Product Overview
The ​112-5CW is a medium-duty surface-mounted door closer engineered for versatile commercial and residential applications. Designed for doors weighing ​45–120 kg with widths up to ​1200 mm, it balances robust performance with adaptable functionality for interior or exterior use.

Key Features
✅ ​Medium-Duty Versatility

• ​Door Weight Capacity: 45–120 kg
• ​Max Door Width: 900–1200 mm
• ​Power Adjustment: Spring-driven EN2-5 grade (EN 1154 certified for precise speed control).

✅ ​Low-Profile & Space-Efficient

• ​Compact Dimensions: 236 mm (L) × 60 mm (W) × 38.5 mm (H)
• ​Minimal Footprint: 50 × 50 × 43 mm
• Rail-guided mechanism for seamless installation and sleek aesthetics.

✅ ​Advanced Functionality

• Optional ​Backcheck (to prevent slamming) and ​Delayed Action (for accessibility compliance).
• ​Finish Customization: Pantone-matched paint, SSS/SNP arm, PA bracket, and corrosion-resistant cover.

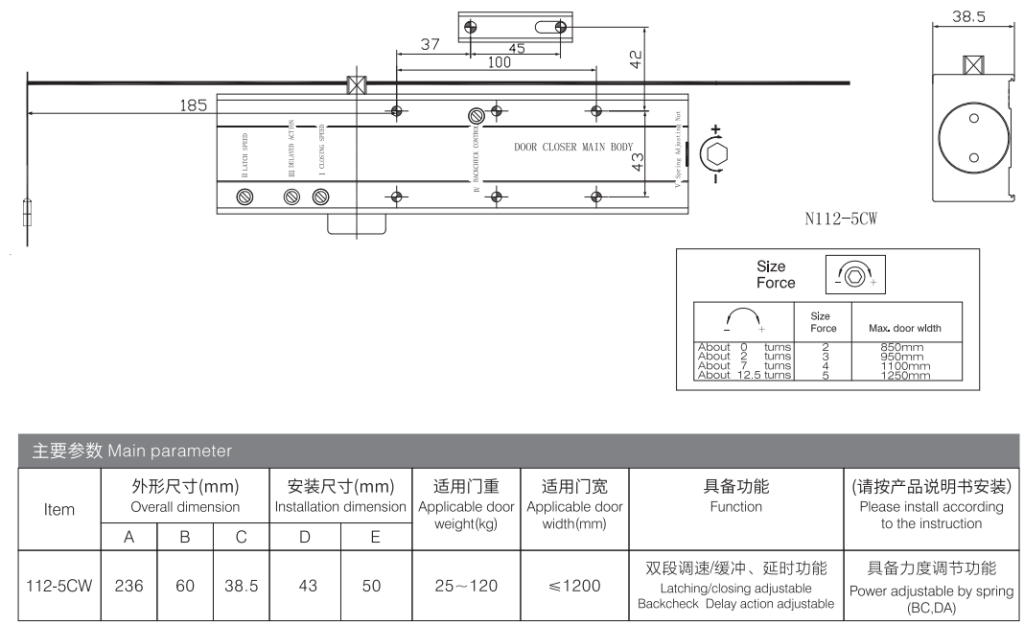

Technical Specifications

Why Choose OUDE?
✔️ ​Engineered for Durability – Corrosion-resistant materials and rigorous quality testing.
✔️ ​Global Standards Compliance – Meets EN 1154 and ISO 9001 for safety and reliability.
✔️ ​Tailored Solutions – Customizable finishes and functional add-ons to suit diverse project requirements.

Fig1

Fig61

Fig66
